Commercial case study

Palm Lake Resort Bargara

Large-scale solar control film for a retirement lifestyle and care community

Ultra Tint was engaged to provide an energy-efficient window film solution for Palm Lake Resort Bargara. The project involved treating over 1,200 sqm of glass across multiple wings, with film selection tailored to exposure, orientation, comfort requirements and long-term building performance.

Project Type: Commercial Solar Control Film
Facility: Retirement lifestyle and care community
Location: Bargara, Queensland
Glass Area: Over 1,200 sqm
Films: Solar Gard AG25 Silver Low-E, MEP Films V28SR Vista Series

Overview

A tailored solar control solution for a large community facility

Retirement lifestyle and care communities place a high demand on internal comfort. Residents, staff and visitors need spaces that remain pleasant throughout the day, while facility managers must consider energy efficiency, glare, appearance, durability and value.

For this commercial window tinting project, Ultra Tint assessed the building layout, facade orientation, sheltered courtyard areas and the likely cooling demands of the local climate before recommending a tailored solar control window film specification.

The aim was practical: help reduce heat and glare, preserve natural light where appropriate and maintain a consistent building appearance across a large site.

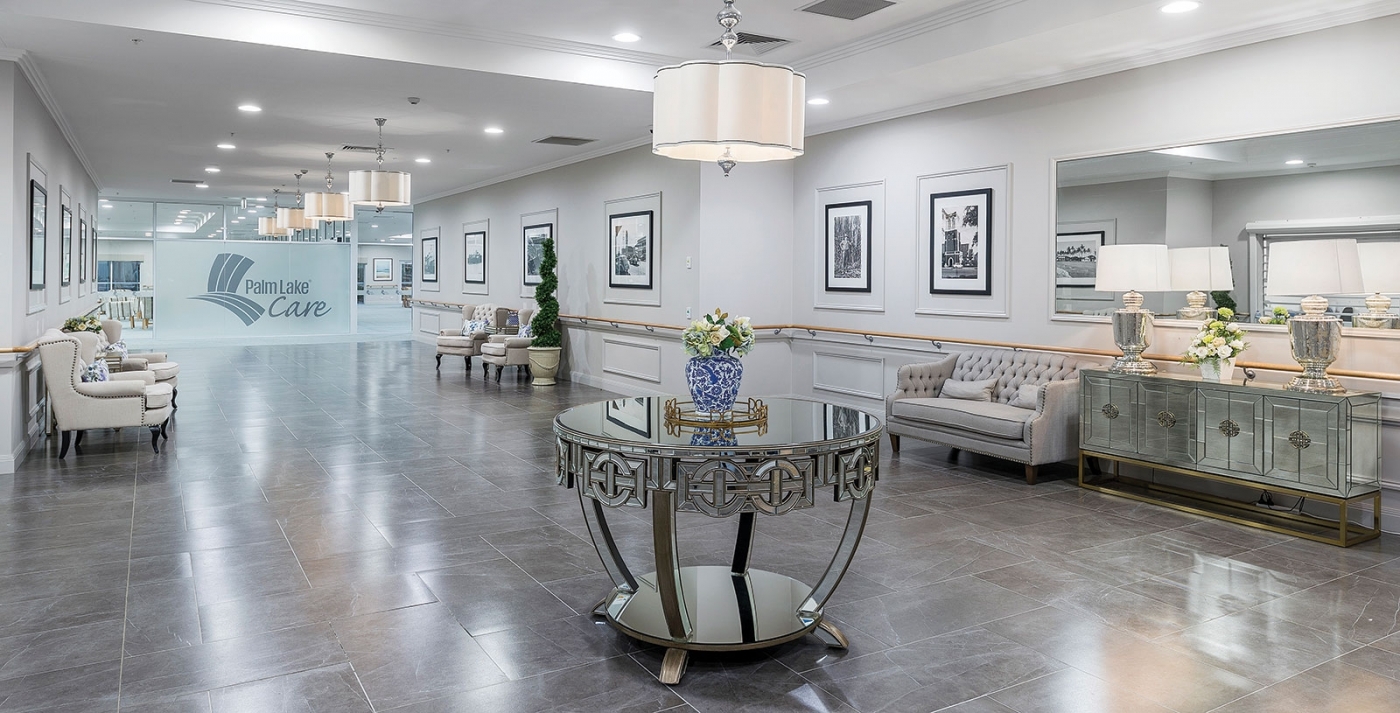

Palm Lake Care Bargara lobby with interior glazing and natural light.

Project challenge

The Challenge

The facility included large areas of glass across multiple wings, with some sections exposed to stronger east and west sun. Those areas required a higher-performance commercial solar film approach.

Large glass area across multiple wings of a retirement lifestyle and care facility.
Warm coastal Queensland conditions with strong solar exposure.
East and west facing facades requiring stronger solar control.
Comfort requirements in a live community environment used by residents, staff and visitors.
A need to balance heat rejection, glare control, visual appearance, natural light and value.

Technical assessment

Why SHGC mattered more than U-value

U-value relates more closely to heat loss and insulation performance. SHGC, or Solar Heat Gain Coefficient, measures how much solar heat passes through the glass.

In Bargara's warm coastal Queensland climate, reducing solar heat gain was generally more valuable for comfort and cooling efficiency than focusing only on winter heat retention. That performance target informed the final film recommendation.

Performance logic

Two measures, different priorities

U-value

Heat loss and insulation

Useful when winter heat retention is the main concern. It was considered, but it was not the dominant performance driver for this warm Queensland site.

SHGC

Solar heat gain and cooling comfort

More relevant for exposed glass in a coastal climate where heat reduction window film and glare reduction window film can improve day-to-day comfort.

The solution

A two-film specification matched to exposure

East and west exterior facades

Solar Gard AG25 Silver Low-E

Recommended for stronger solar heat gain reduction and Low-E performance on exposed exterior facades.

Remaining windows and doors

MEP Films V28SR Vista Series

Selected for solar control, glare reduction, optical clarity, natural light and visual consistency.

Interior courtyard areas

Assessed separately

Courtyard glass had reduced direct sunlight and greater shelter from the elements, so it was reviewed separately rather than treated with a one-film-fits-all approach.

Project imagery

Palm Lake Resort Bargara glass and facility areas

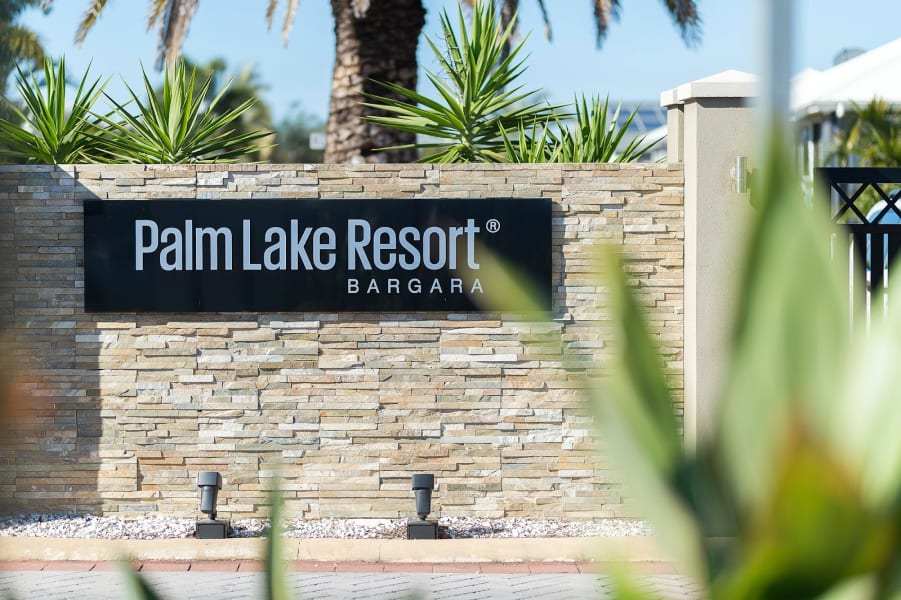

Palm Lake Resort Bargara entry sign. — Palm Lake Resort Bargara in coastal Queensland.

Palm Lake Care Bargara lobby with interior glass and natural light. — Shared care spaces needed comfort without losing a bright, open feel.

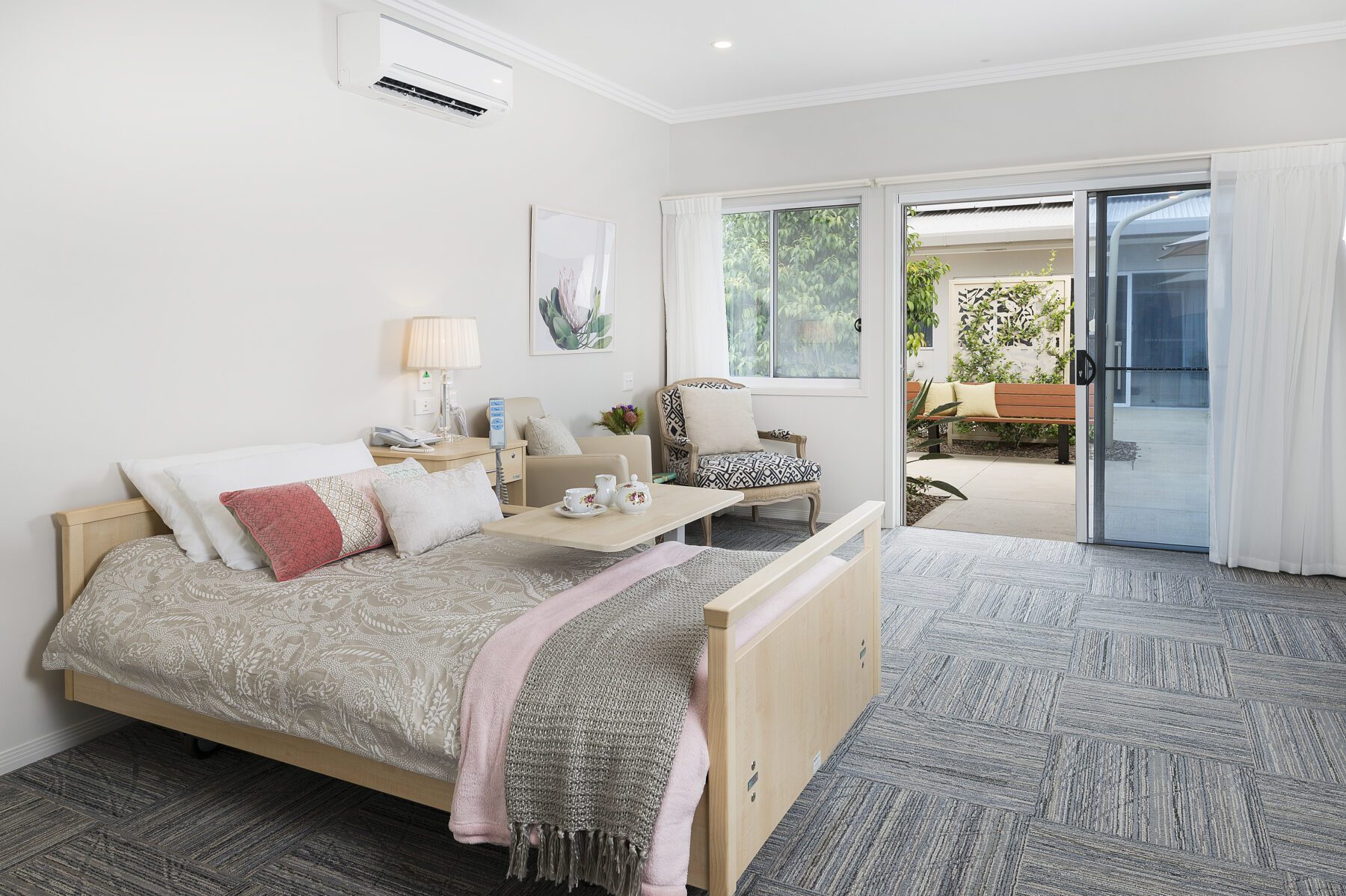

Resident room glazing opening to a sheltered courtyard at Palm Lake Care Bargara. — Courtyard-facing glass was assessed separately because exposure conditions differed.

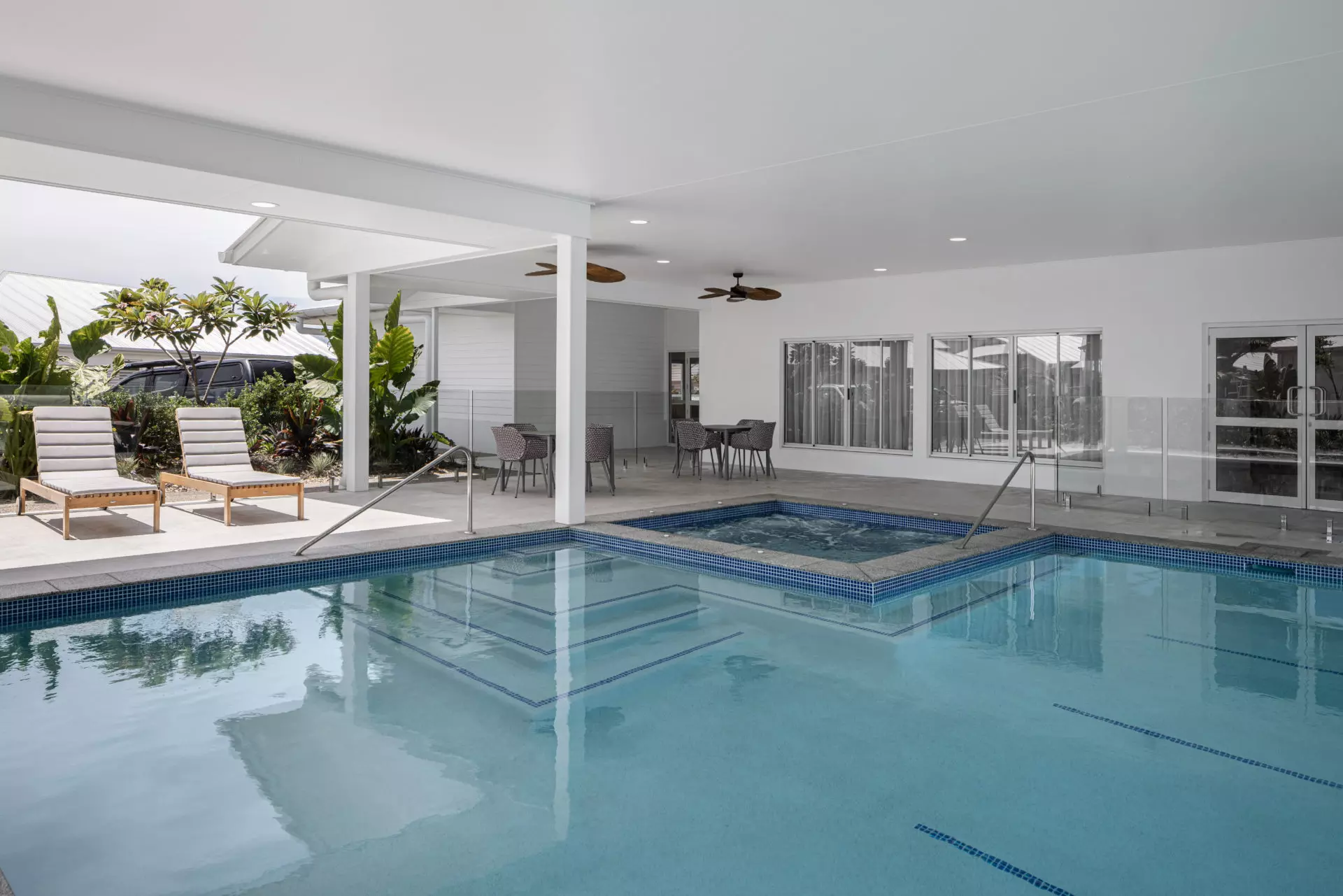

Covered pool area glazing at Palm Lake Resort Bargara. — Different building areas called for a tailored approach rather than one film everywhere.

Project scale

Over 1,200 sqm of treated glass

The scale mattered, but the key decision was not to treat every elevation the same. Film choice changed with exposure, use of space, resident comfort and overall project value.

sqm treated glass: 1,200+
building wings: Multiple
film systems: 2
commercial environment: Community

Outcome

A practical retrofit for comfort, glare and heat

The selected films were specified to help reduce solar heat gain, manage glare and improve internal comfort. The installation provided a practical retrofit upgrade without replacing the existing glass.

The project shows Ultra Tint's commercial solar-control work in a care setting where comfort, glare and appearance all mattered.

Commercial experience

Commercial experience that matters

Ultra Tint was established on the Gold Coast in 1977, with decades of residential and commercial window film experience behind the work.

That long commercial window film experience matters on care and community sites, where the film has to suit exposure, comfort and day-to-day facility use.
